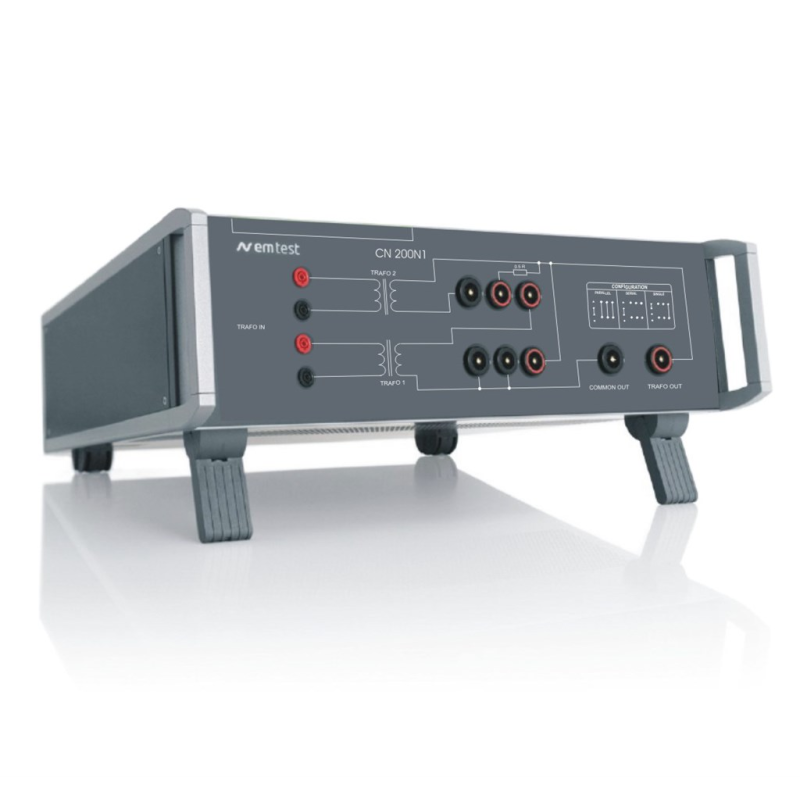

CN 200N1

Frequency response 10 Hz to 250 kHz
Secondary saturation up to 50 A
Audio power 2 x 200 W
Turns ratio 2:1 step down
Freely configurable on primary/secondary; serial, parallel, single
Built-in non-inductive load resistor 0.5 ohm, 250 W

Overview +

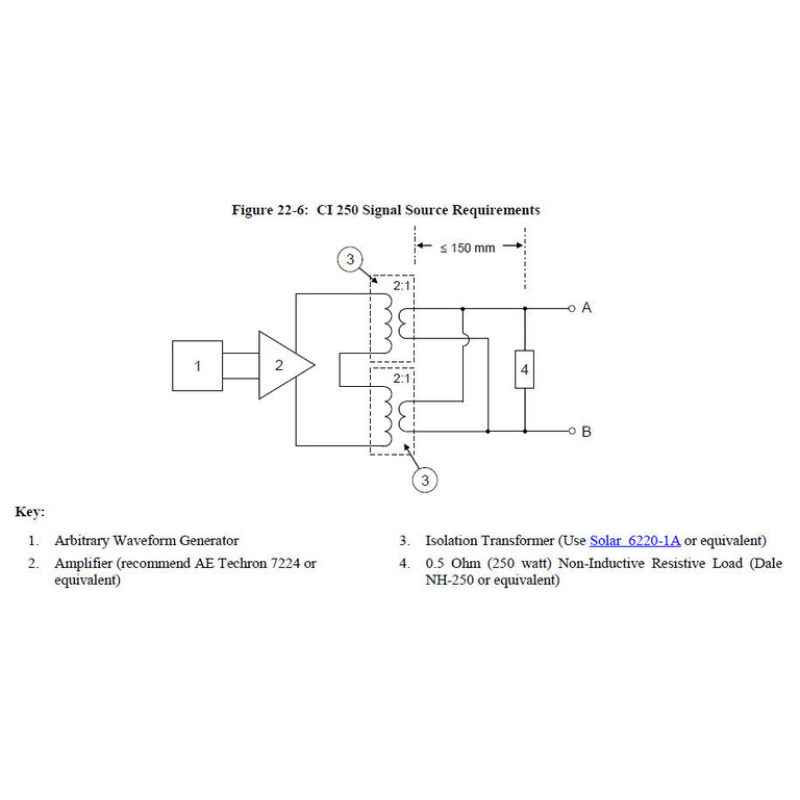

The CN 200N1 is a standalone coupling network unifying two audio transformers being individually configurable for various test requirements (e.g. Ford FMC1278 and SAE J1113-2). The CN 200N1 is used to apply the test signals to the lines under test via an audio transformer to perform ripple voltage tests and continuous or transient conducted immunity tests.

Datasheets +
- CN 200N1

Standards +
Automotive Standards+

SAE J1113-2 ISO 11452-10

Automotive OEM Specifications+

Ford EMC-CS-2009.1 Mazda MES PW 67602 Ford FMC 1278 Jaguar JLR-EMC-CS Mitsubishi ES-X82115 Tesla TS-0000425-05
Videos +
ProductVideoMessage
- EMC compliance solutions for electric vehicles

  Transient immunity and emissions testing for every automotive application: 12, 24, 48V and EVs
- Electric vehicle EMC testing - Ripple immunity

  introduction to ripple - what is it, how it is tested
