CA OCS F Kit

Calibration kit as per IEC 61000-4-18
0.1ohm load resistor included
1,000ohm load resistor included
Adapters provided to adapt the load resistors to the output of the coupling network for easy measurement

Overview +

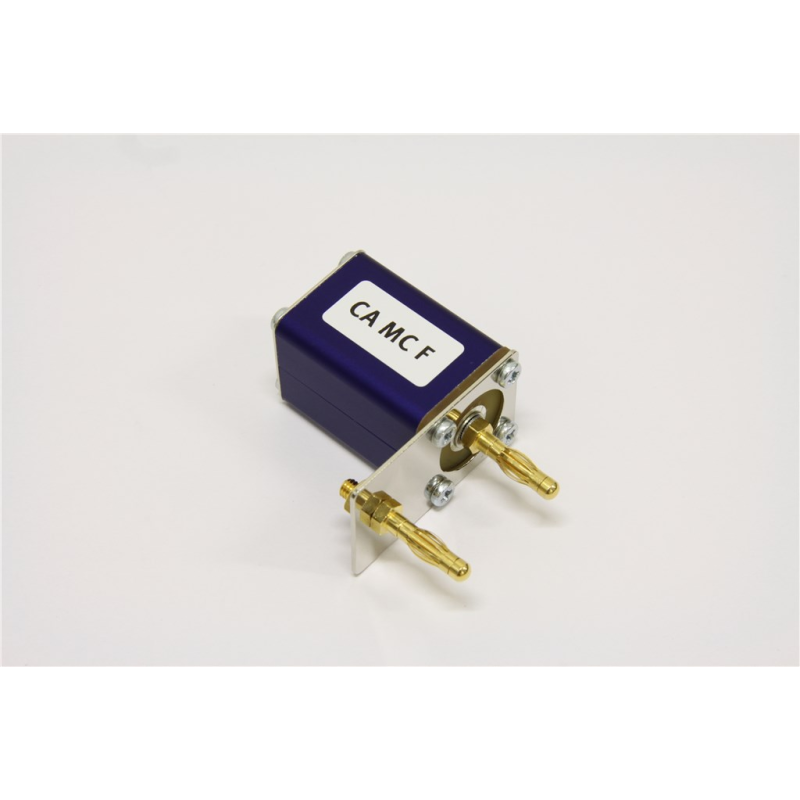

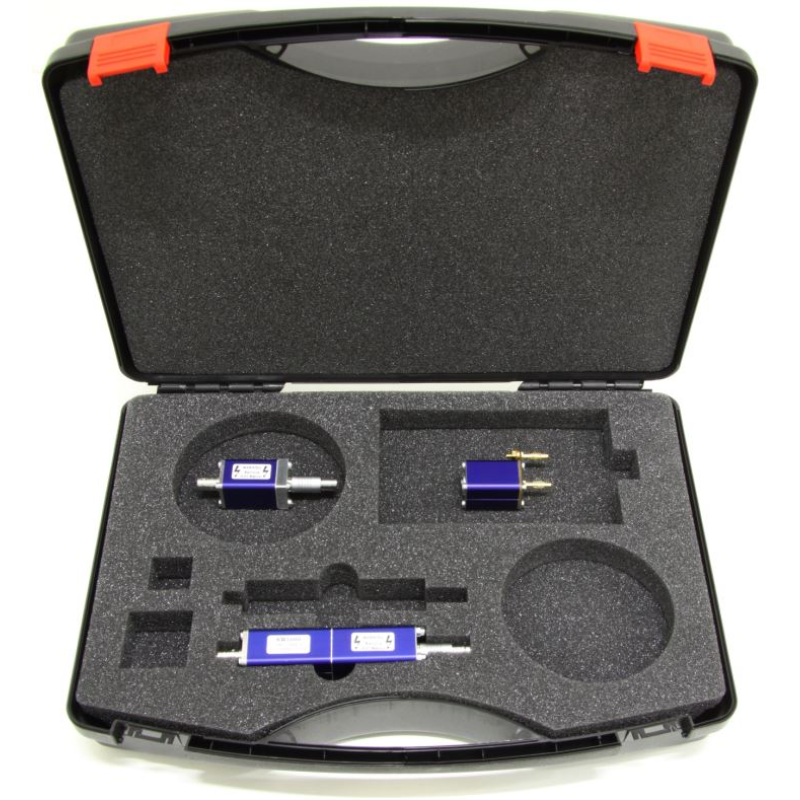

The pulse shape of fast damped oscillatory generator designed as per IEC 61000-4-18 have to be verified both into a 0.1ohm and a 1,000ohm load at the 50ohm coaxial HV output as well into 0.1ohm load at the output of the coupling network. The CA OCCS F kit includes the load resistors and a set of adapter to connect the coaxial matching resistors appropriately to the DUT output port.

Datasheets +
- Data Sheet CA OCS F Kit (20121029)

Standards +
IEC / EN Basic Standards+

IEC 61000-4-18
