CA LV124/LV148 Series

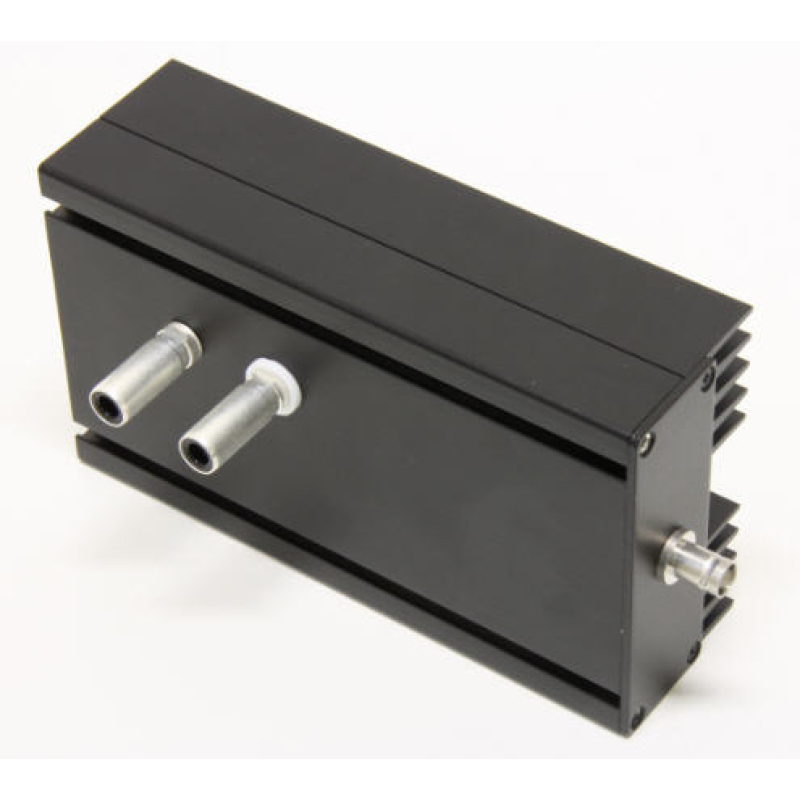

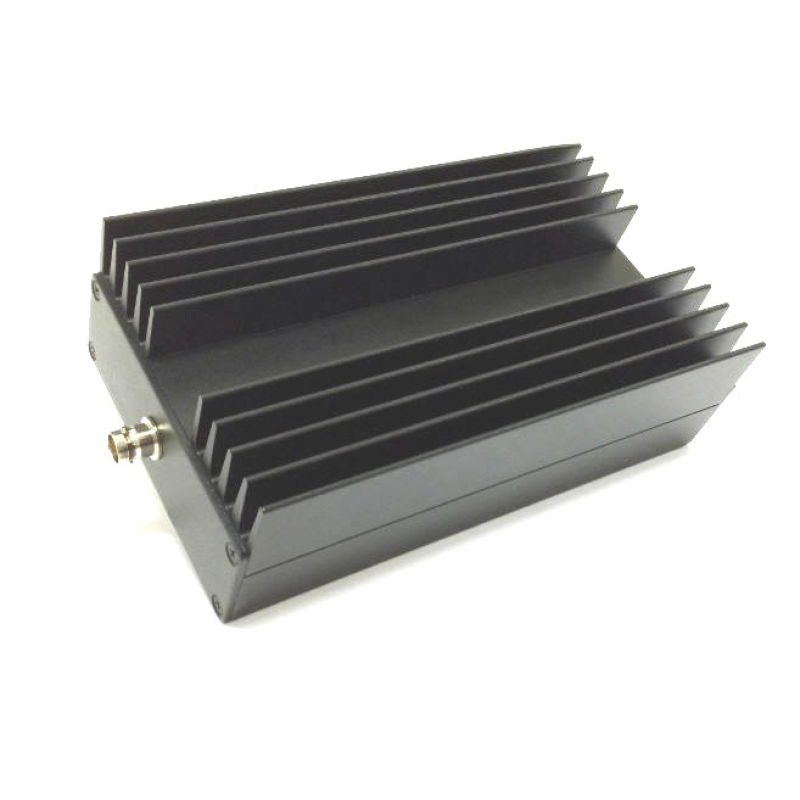

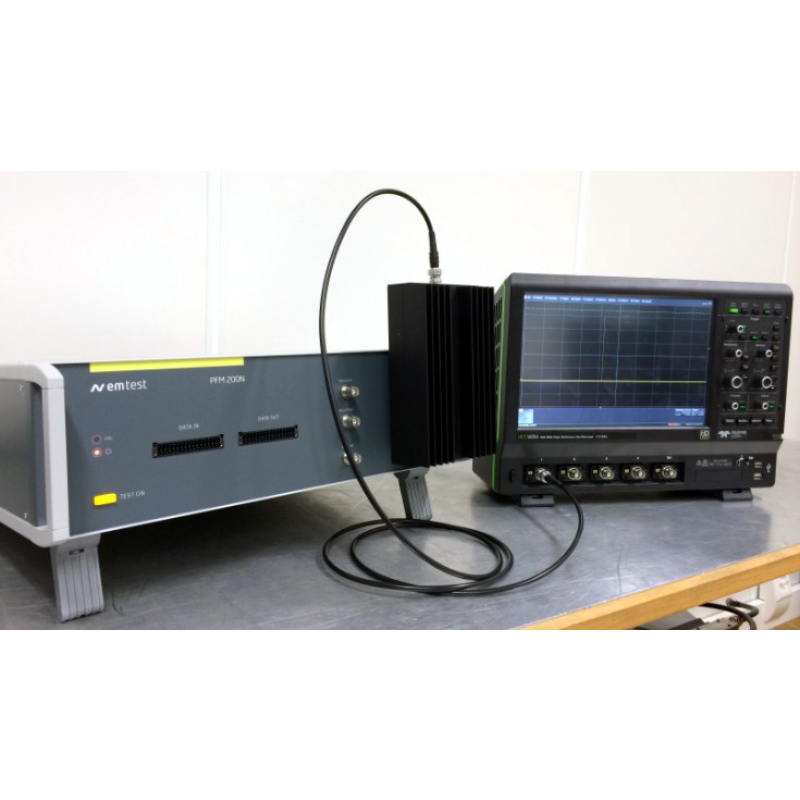

Low inductive load resistor for direct connection into the PFM 200N Series output power plugs

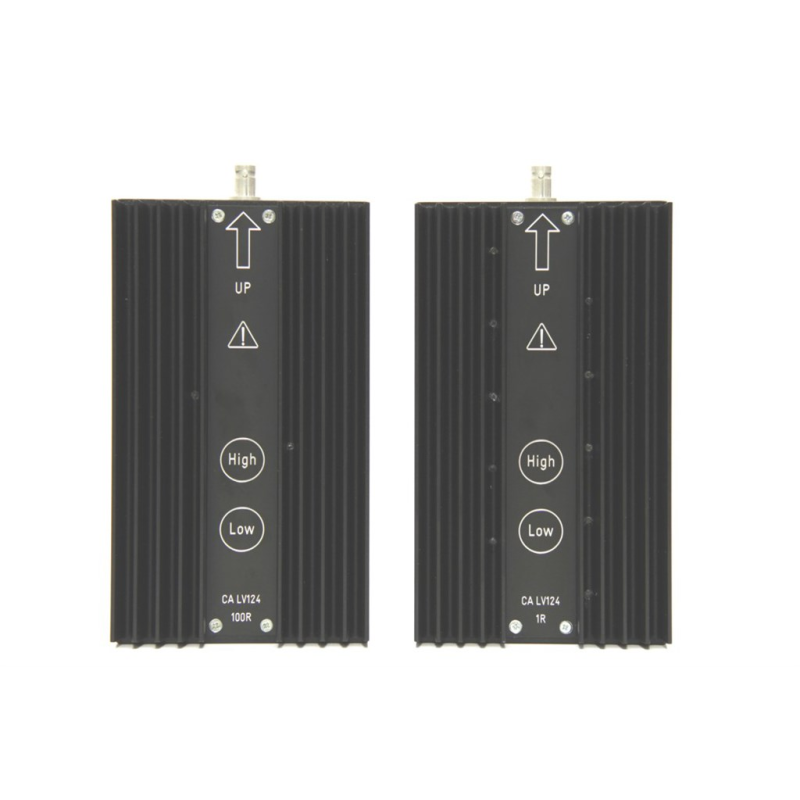

Load resistors for power lines verification

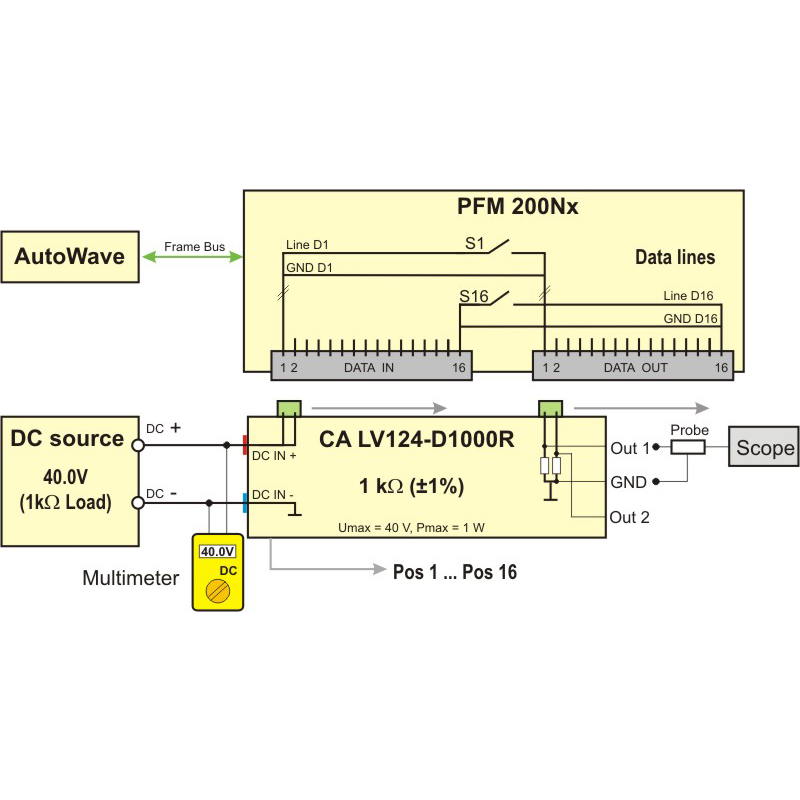

Load resistors for data line verification

Overview +

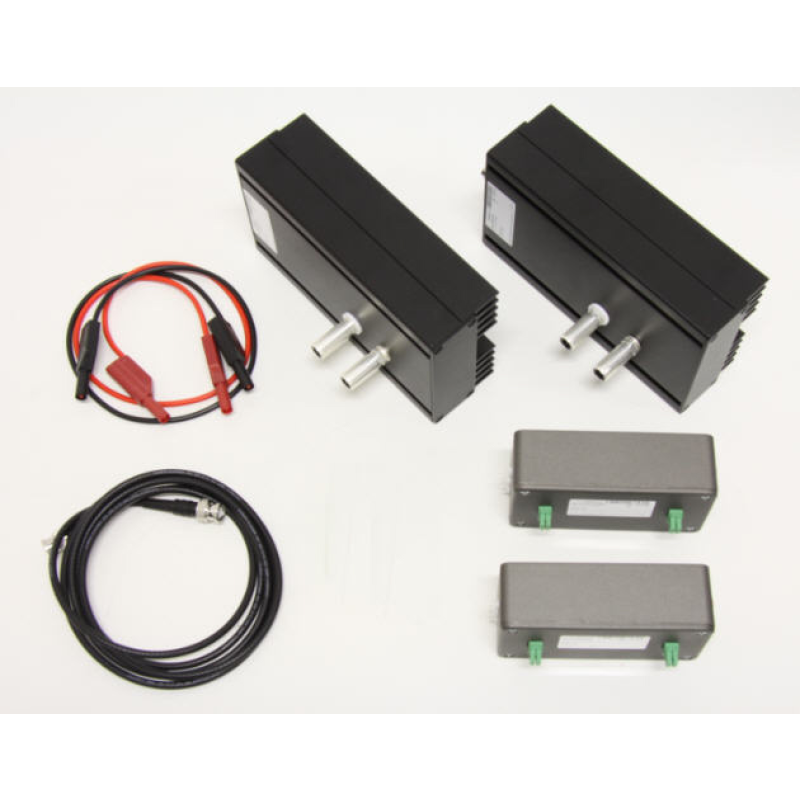

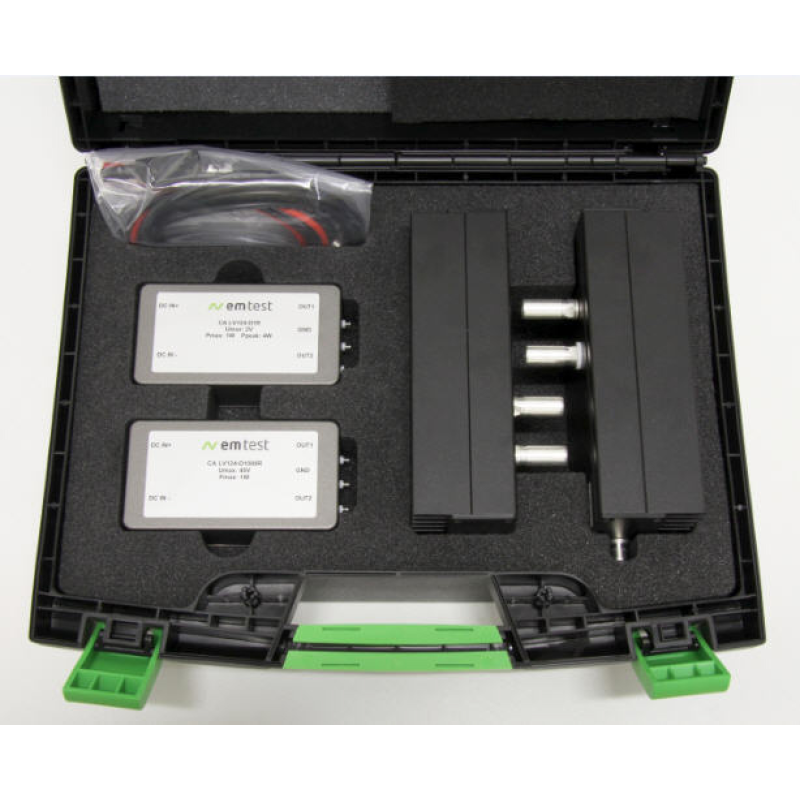

The CA LV sets include four load resistors for the verification of the pulses, for example E10 and E13 of the LV 124 (2013). The load resistors CA LV124-P1R and CA LV124-P100R are used for power line verification. For verification the 16 signal and data lines the CA LV124-D1R and CA LV124-D1000R are used.

Datasheets +
- CA LV Series

Standards +
Automotive OEM Specifications+

LV 124 LV 148
