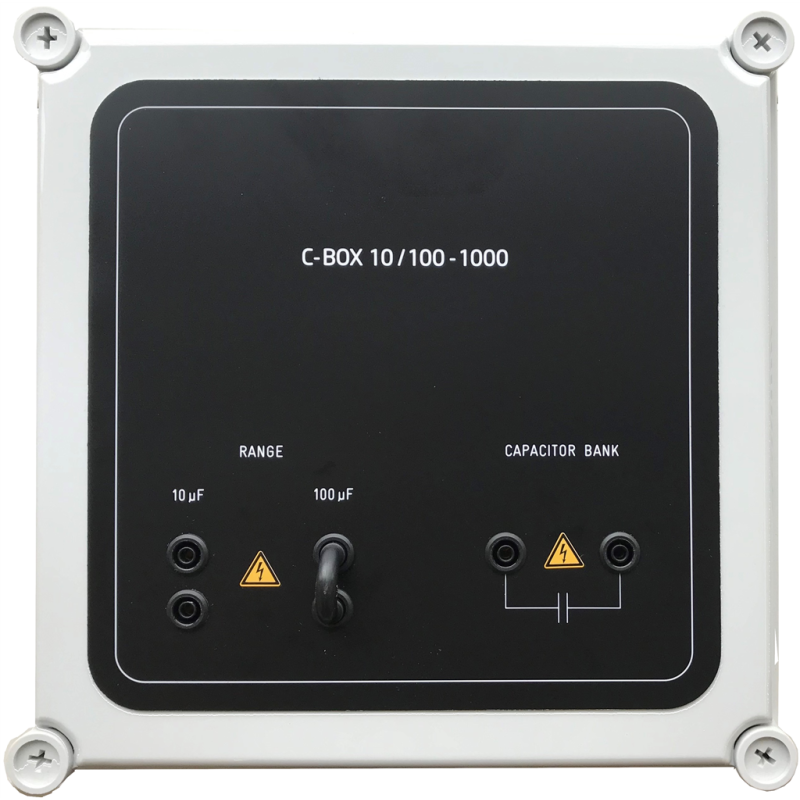

C-BOX 10/100-1000

Shunt capacitor for ripple testing
low impedance capacitors allow high ripple current testing
700 VAC / 1000 VDC EUT voltage

Overview +

The C-Box 10/100-1000 is used to bypass the power source during ripple testing. It comes in a compact box containing two capacitances of 10 and 100 uF. The value can be selected by setting the jumper on the front panel of the box.

Datasheets +
- C-BOX 10-100-1000_2021-08-20_EN

Standards +
Automotive Standards+

ISO/TR 7637-4 ISO 21498

Automotive OEM Specifications+

VW 80300 Mercedes MBN 11123 Mercedes MBN LV123
