burst NX8 series

  • 8,000 V Burst voltage
  • Built-in single or three phase CDN
  • Spike frequency 1MHz
  • Easy to use 7“ color touch screen
  • Parameters can be changed while test is running
  • Opto-Link and Ethernet for remote control
  • Wide range of optional test accessories

  • Overview +

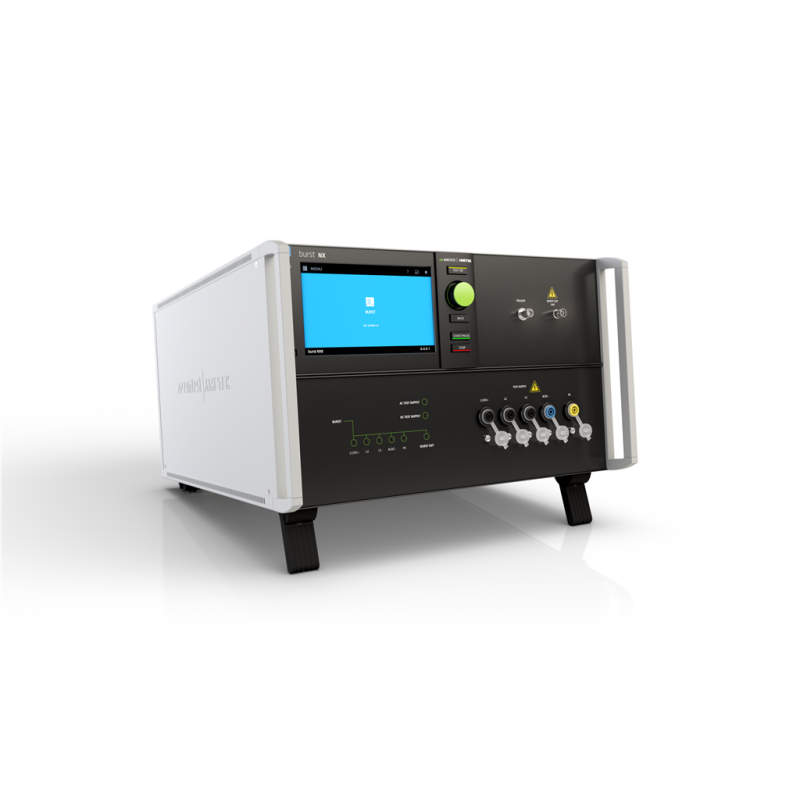

    burst NX8 - EFT/Burst Tester The burst NX8 is the state-of-the-art EFT/Burst tester with Burst-pulses up to 8 kV. It comes with a built-in coupling/decoupling network for single phase or three-phase mains supply lines and a HV terminal to connect a capacitive coupling clamp. Its performance complies with IEC 61000-4-4:2004, IEC 61000-4-4 Amd.1 Ed.2:01/2010 and IEC 61000-4-4 Ed.3: 03/2012. Pre-programmed Standard Test routines and a number of selected User Test routines make the burst NX8 an optimum standalone solution for both testing during development and final testing of products and sub-assemblies.

  • Datasheets +

  • Standards +


    • IEC / EN Basic Standards+

    • IEC / EN Generic Standards+
