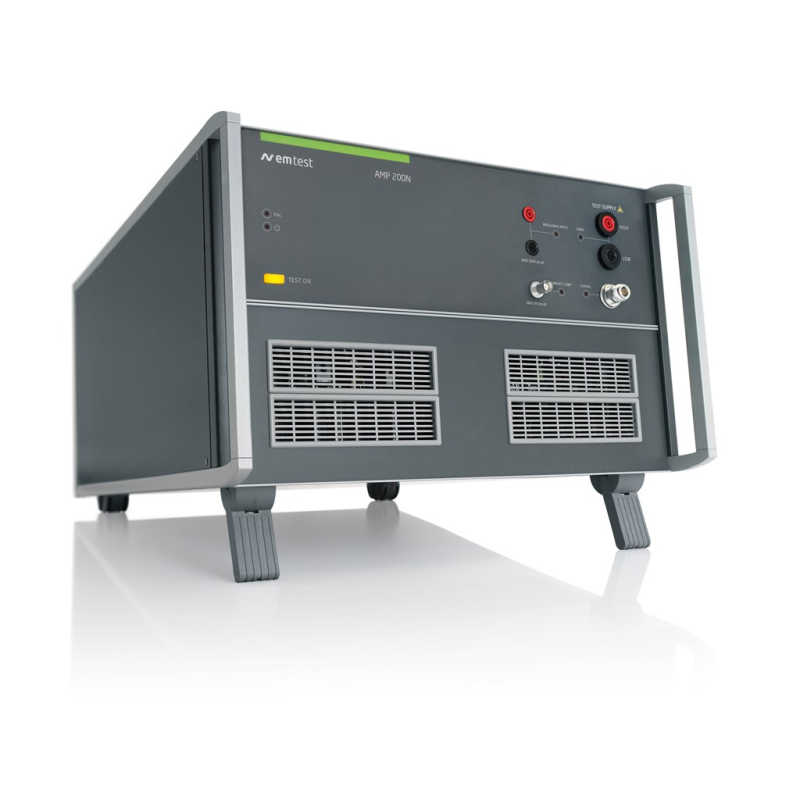

AMP 200N

  • Automatic Closed Loop test procedures
  • Built-in DDS sinus signal generator up to 500 kHz
  • Output voltage max. 160 V p-p, 50 V rms
  • Output current max. 18 A rms
  • Designed for EV's and much more
  • Supports magnetic field tests up to 1100 A/m
  • Short-circuit protected
  • Integrated frequency-selective current measurement 10 Hz - 250 kHz (optional)
  • Overview +

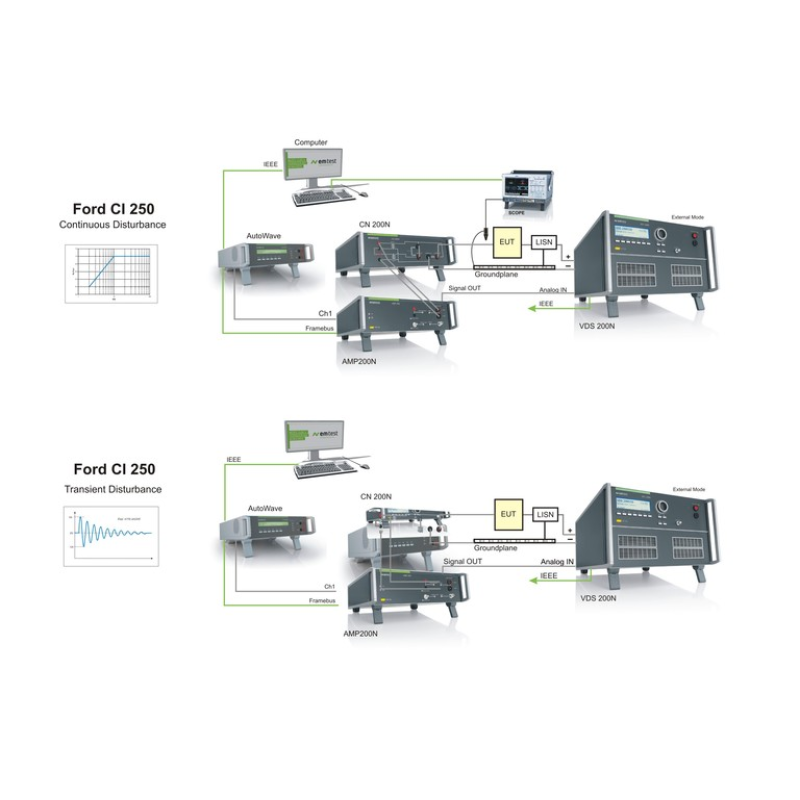

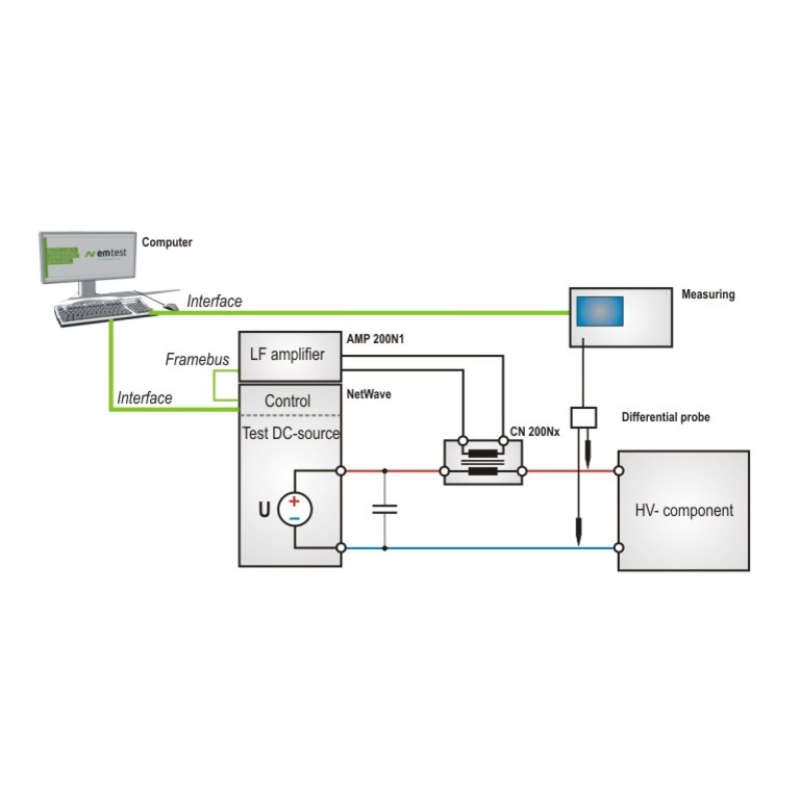

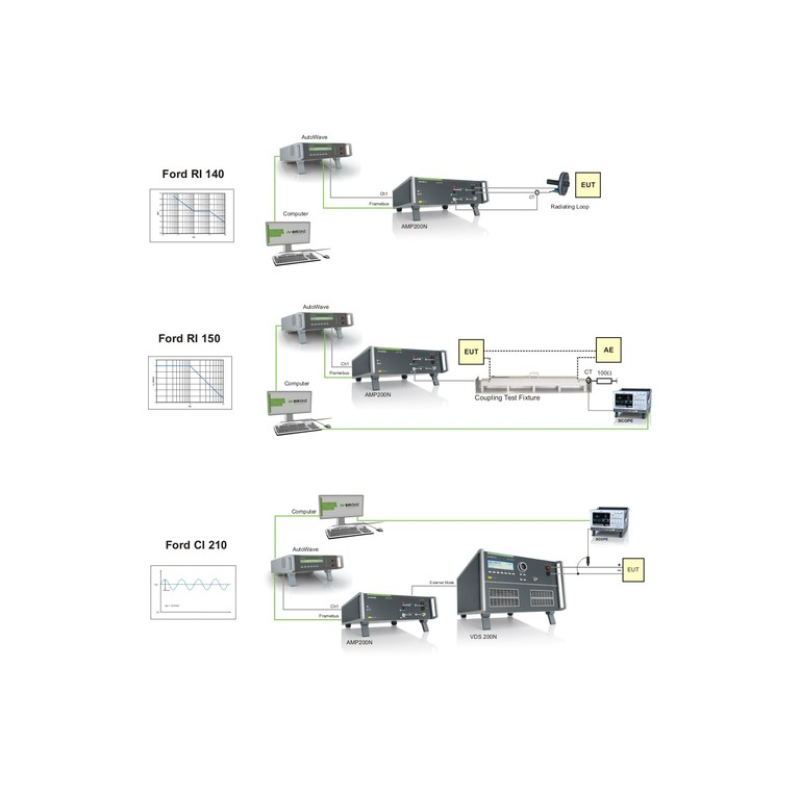

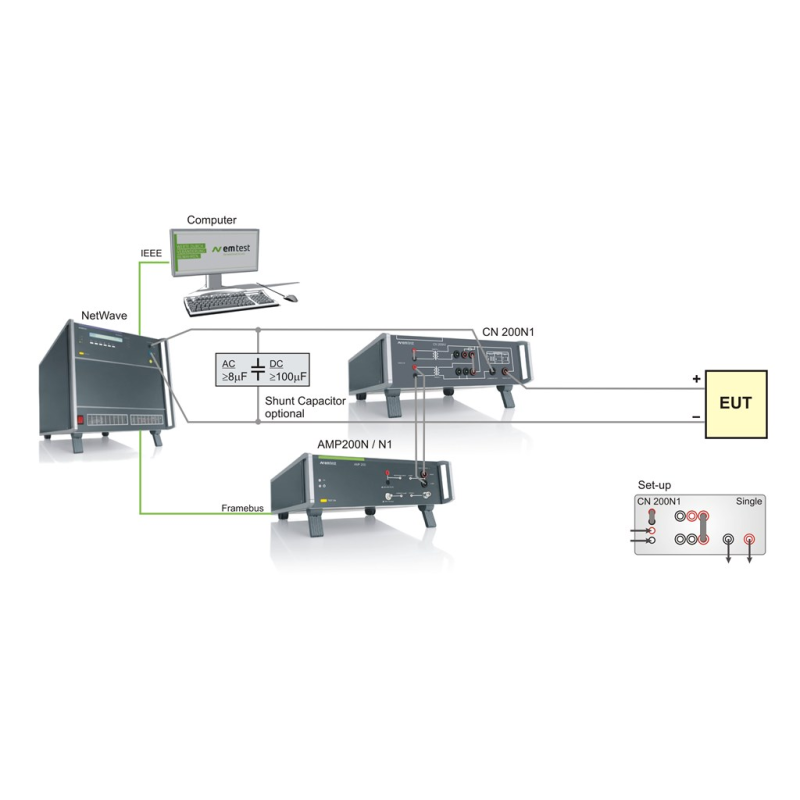

    AMP 200N2 - Low-frequency signal / amplifier for supply simulation and magnetic field testing The AMP 200N2 has been designed as a low-frequency signal source to generate sinusoidal signals used to simulate ripple noise and ground shift noise as required by a variety of standards in the avionics, military and automotive industry. The AMP 200N2 is controlled by the NetWave (for testing Electrical Vehicles, avionics, military and nautic standard requirements. e.g LV 123 and ISO 7637-4 Pulse C). The AutoWave is used for automotive testing such as e.g. Ford FMC1278. Additionally, the AMP 200N2 can be used to generate magnetic fields by means of a radiation loop or small Helmholtz coils as per various standards.
