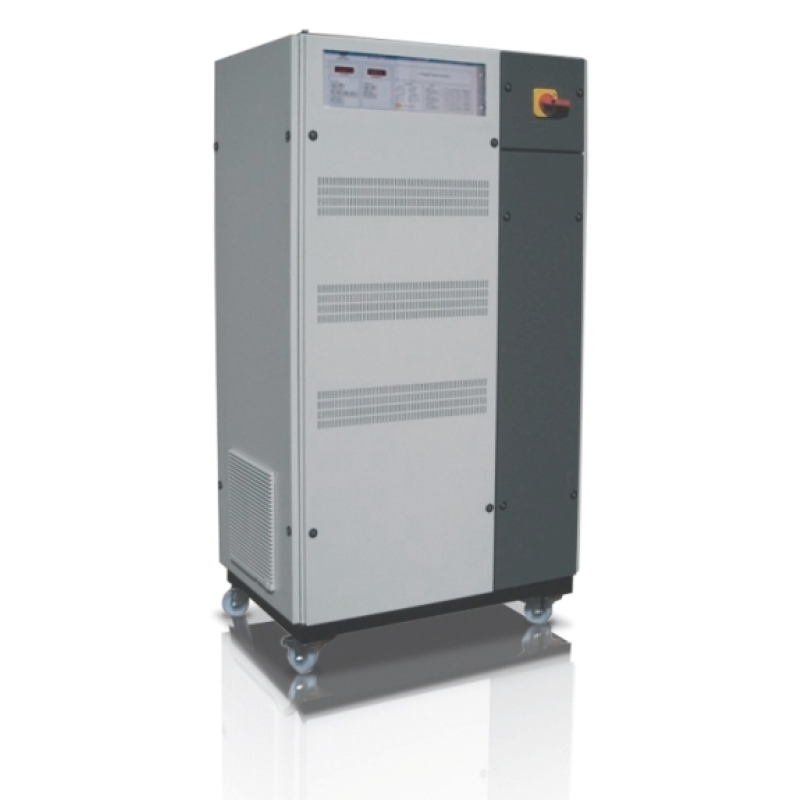

ACS 503N Series

Frequency (fund.) 40Hz .. 80Hz
Very low distortion (THD)
Very high voltage stability
Output power 16kVA .. 90kVA (depending on model)
Output voltage max. 300V(p-n)
Inrush current capability
Remote control by the DPA 503N via RS232

Overview +

Sophisticated 3-Phase AC sources for harmonics & flicker applications The ACS 503N-series are three-phase AC sources, specifically designed for harmonics and flicker testing. They meet the corresponding specifications as per IEC/EN 61000-3-2, IEC/EN 61000-3-3 and JIS C 61000-3-2 as well as per IEC/EN 61000-3-11 and IEC/EN 61000-3-12 for measuring DUTs having a nominal current of more than 16A per phase. The ACS 503N-series provides the perfect sinusoidal and stable voltage signal specified to perform fully compliant harmonics and flicker analysis despite of the mains supply frequency and steadyness of the voltage.

Datasheets +
- ACS 503N Series_datasheet_2022-09-30_EN

Standards +
IEC / EN Basic Standards+

IEC 61000-3-2 IEC 61000-3-12 IEC 61000-3-3 IEC 61000-3-11
