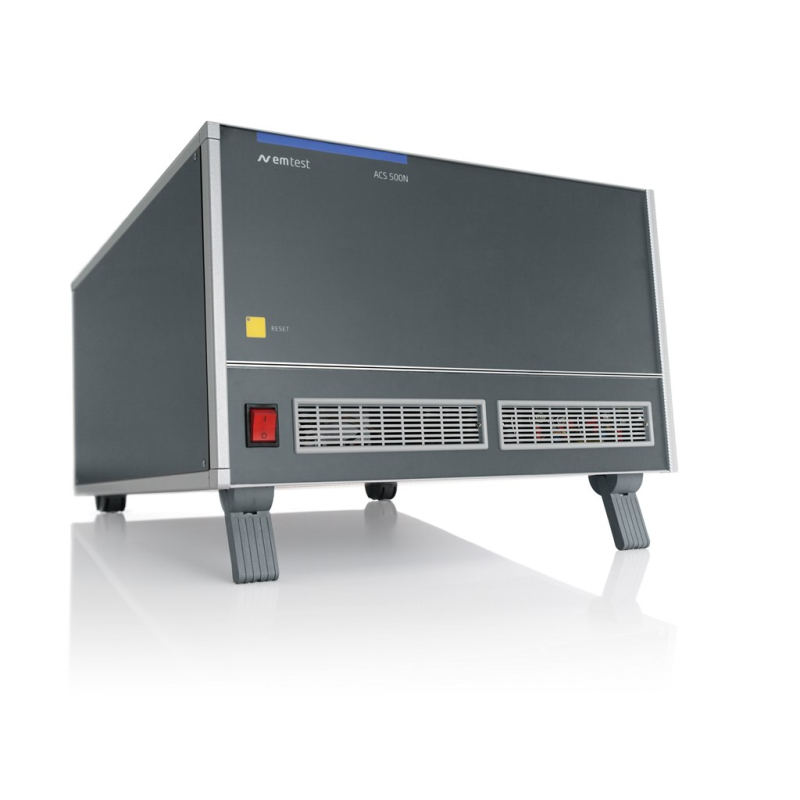

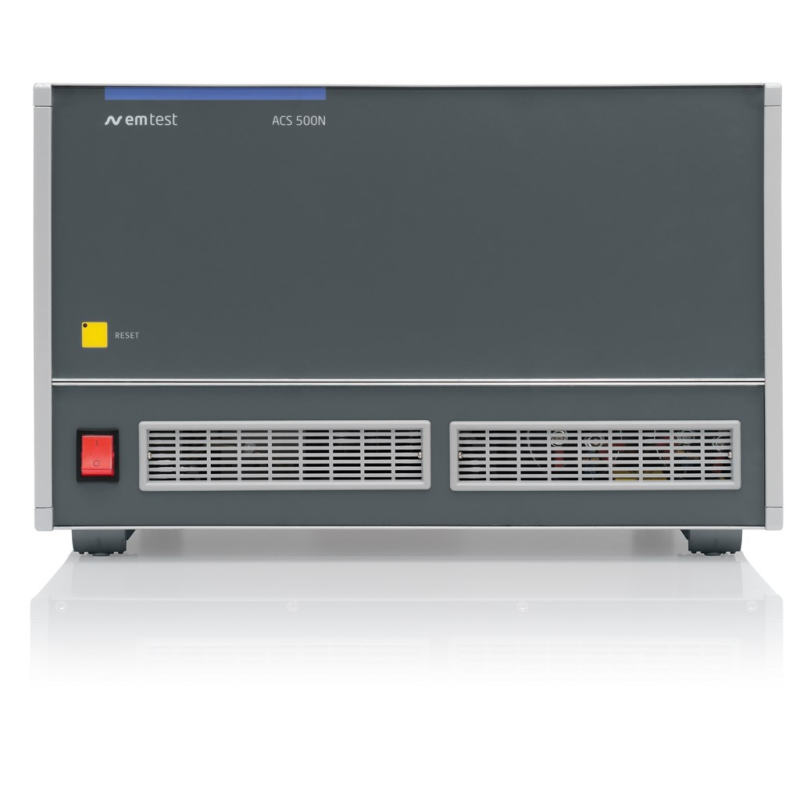

ACS 500N Series

Frequency (fund.) 40Hz .. 80Hz
Very low distortion (THD)
Very high voltage stability
Output power 3 or 6kVA
Output voltage max. 300V(p-n)
Inrush current capability
Remote control by the DPA 503N via RS232

Overview +

Application ACS 500N3 is a single phase AC source, specifically designed for harmonics and flicker testing. It meets the corresponding specifications as per EN/IEC 61000-3-2 and EN/IEC 61000-3-3 as well as JIS C 61000-3-2. ACS 500N3 provides the perfect sinusoidal and stable voltage signal specified to perform fully compliant harmonics and flicker analysis despite of the mains supply frequency and steadyness of the voltage.

Datasheets +
- Data Sheet ACS 500N6 (20080616)
- Data Sheet ACS 500N3 (20100820)
- ACS 500N Series_datasheet_2022-09-30_EN

Standards +
IEC / EN Basic Standards+

IEC 61000-3-2 IEC 61000-3-3
