ACC

Strictly acc. to ISO 7637 and many car manufacturer specifications
Precise construction with highest quality surfaces
Accept cables up to 40 mm diameter
Characteristic impedance 50 Ohm

Overview +

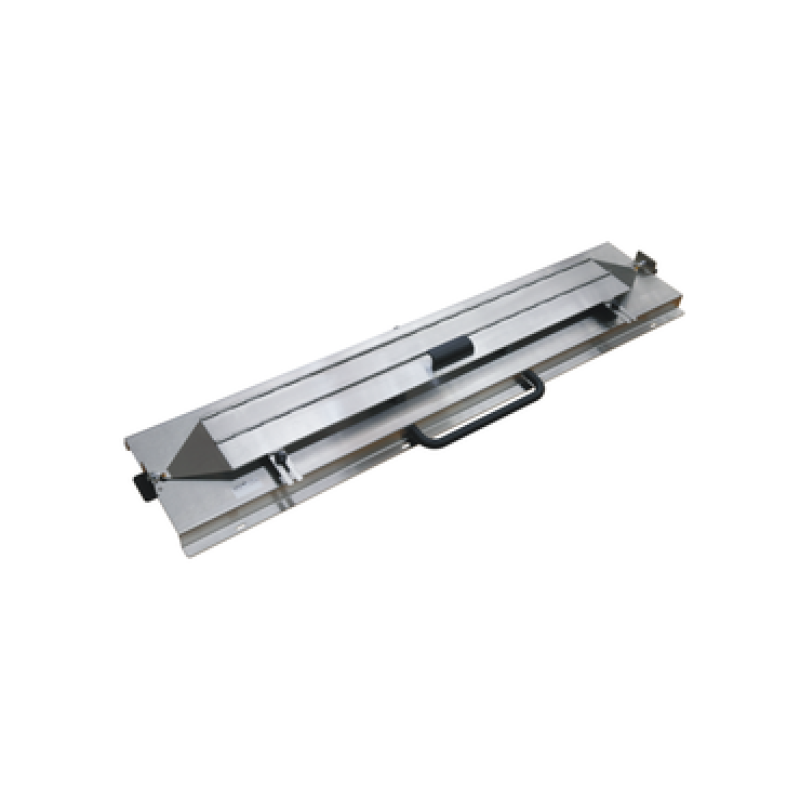

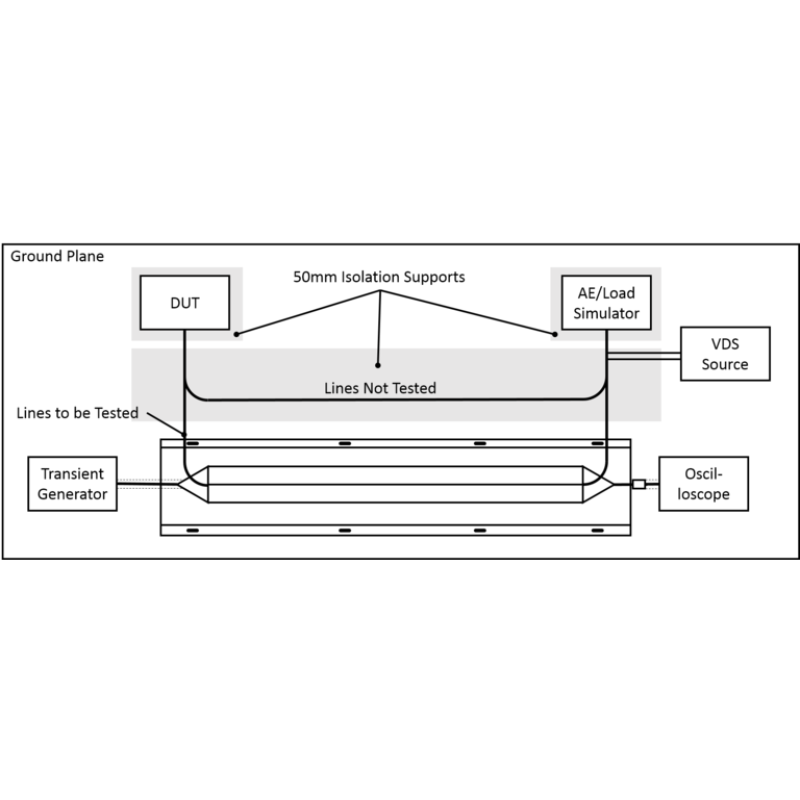

Coupling of fast transient pulses to I/O lines The capacitive coupling clamp ACC is used to couple fast transient pulses to I/O lines as required in different national and international standards and car manufacturer specifications for automotive testing. The effective coupling capacitance depends on the diameter and the material of the used cables. A typical value will be around 100 pF.

Datasheets +
- ACC

Standards +
Automotive Standards+

ISO 7637-3

Automotive OEM Specifications+

BMW GS 95002 Fiat 9.90110 Renault 36-00.808/--N Volvo STD 515-003 VW TL 801 01 FCA CS.00054 Mercedes MBN 10284-4
