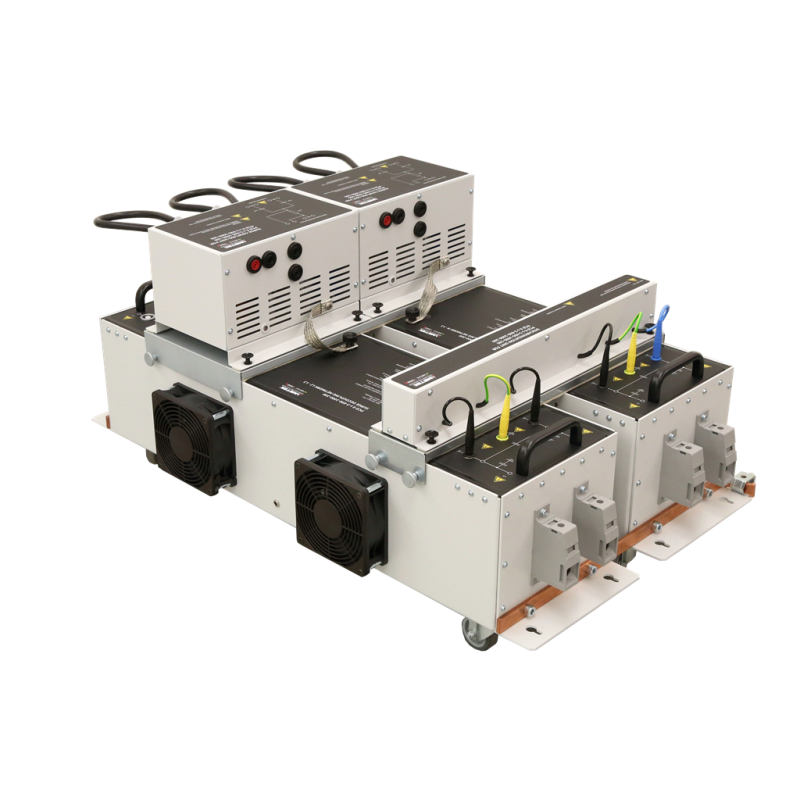

PCD 8 s-3-690-1000 series

  • Coupling/decoupling network according to IEC/EN 61000-4-5
  • Line voltage 3 * 690 V AC, 1.000 V DC, max. 100/200 A
  • Surge test voltage up to 8 kV / 4 kA
  • Complies with IEC / EN 61000-4-5 and ANSI C62.45 (optional)
  • Upgradeable from IEC / EN to ANSI coupling
  • Supported by compact NX and NSG 3000A-series

  • Overview +


    Coupling/decoupling network for surge pulses on high voltage supply lines up to 3 * 690 V AC, 1.000 V DC, models for 100 and 200 A available. Pulses are coupled manually.

  • Datasheets +

  • Standards +


    • IEC / EN Basic Standards+

    • IEC / EN Generic Standards+
