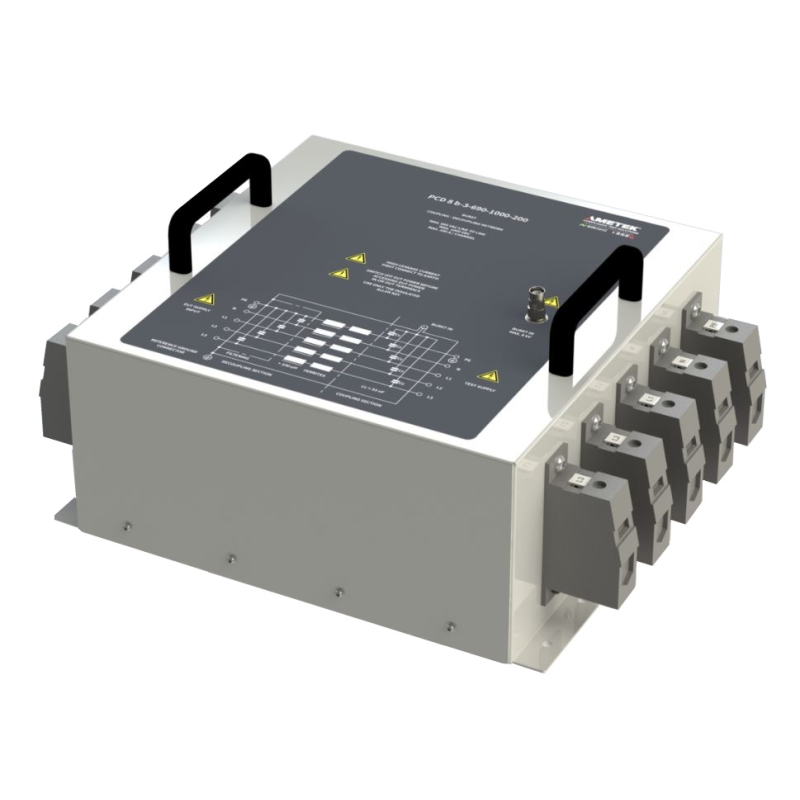

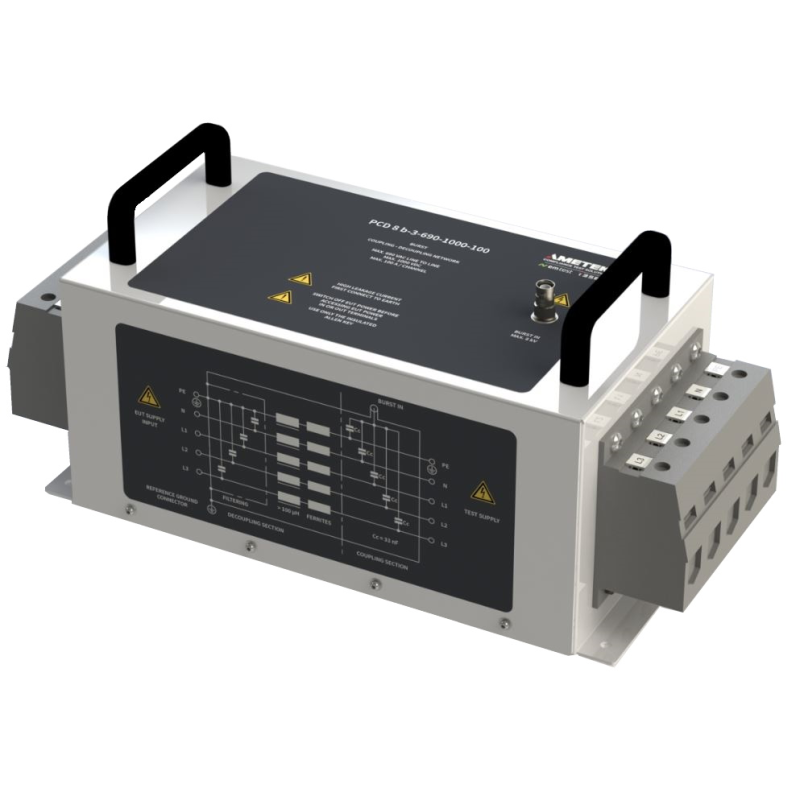

PCD 8 b-3-690-1000 series

  • Coupling/decoupling network according to IEC/EN 61000-4-4
  • Line voltage 3 * 690 V AC, 1.000 V DC, max. 100/200 A
  • Burst test voltage up to 8 kV
  • Manual coupling in commom mode to all lines
  • Supported by compact NX and NSG 3000A-series
  • Can also be used with UCS 500N and NSG 3000-series

  • Overview +


    Coupling/decoupling network for burst pulses on high voltage supply lines up to 3 * 690 V AC, 1.000 V DC, models for 100 and 200 A available. Pulses are coupled in common mode (all lines simultaneously).
