PCD 6-DC s-1-1400-400

Coupling/decoupling network according to IEC/EN 61000-4-5
Coupling to high current DC lines with 2/12 Ohm
Line voltage 1.400 V DC up to 400 A DC
Surge test voltage up to 6 kV
Manual coupling for differential mode or common mode
Supported by compact NX and NSG 30x0A

Overview +

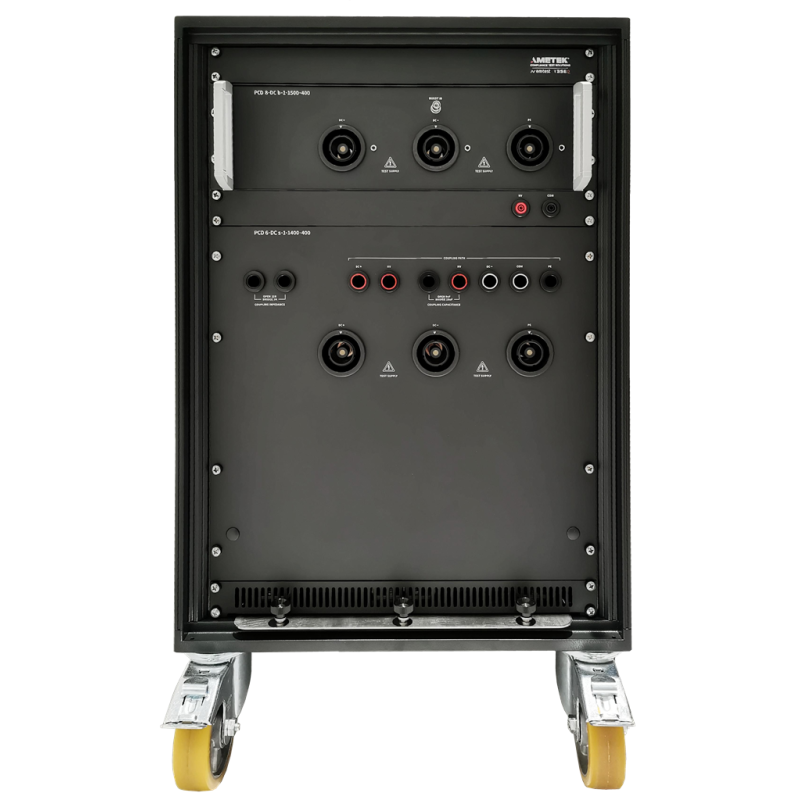

The PCD 6-DC s-1-1400-400 is a manual coupling decoupling network for coupling Surge pulses up to 6 kV onto high current DC power lines up to 400 A.
