  • Construction as per IEC 61000-4-4 Ed.3
  • EFT/Burst testing of signal- and datalines
  • Active coupling length 1 m
  • Permissable burst voltage 7 kV
  • For cable diameter up to 40 mm
  • Calibration kit for capacitive coupling clamp as per IEC 61000-4-4 Ed.3
  • Extension for the PVF BKIT 1 for capacitive coupling clamp calibration with EFT/burst
  • Flexible transducer plate 1,050 x 120 mm (optional)
  • Overview +

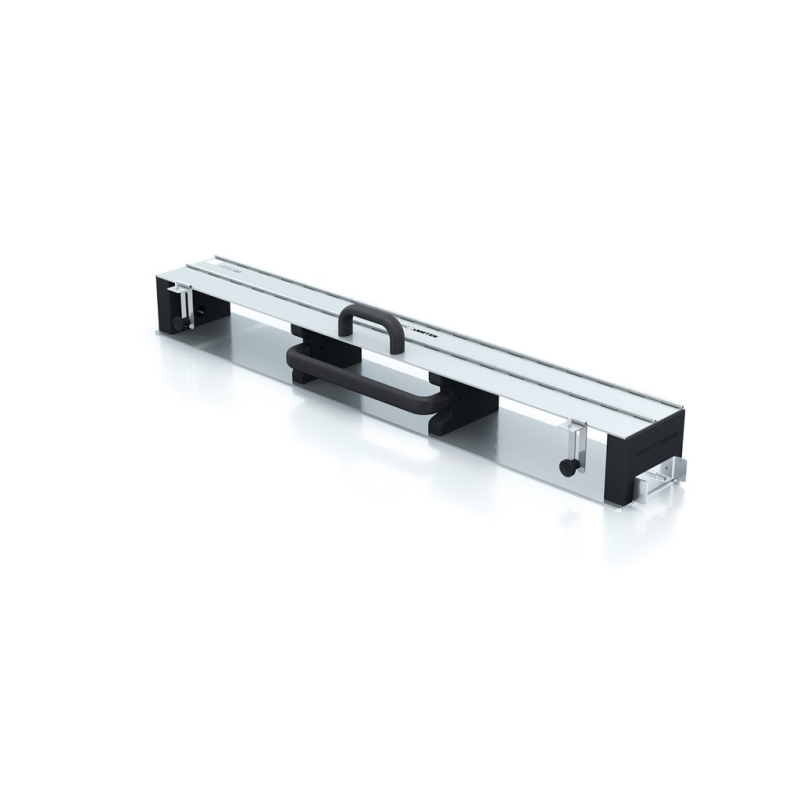

    The CCI is used to couple EFT/burst pulses to I/O lines as required in different European and international standards for immunity testing. The coupling of the Electrical Fast Transients EFT/burst to signal lines can usually not be achieved by discrete capacitive coupling without interfering with the signal flow. It is often impossible to contact the required circuit (direct), e. g. coaxial or shielded cables. In this case the coupling is realized by the capacitive coupling clamp. The interference simulator can be connected on both sides of the coupling clamp. The IEC 61000-4-4 Ed 3.0 published 2012 recomends the calibration of the capacitive coupling clamp into a 50ohm coaxial load with the normative calibration kit CCI PVKIT 1.
