CCI PVKIT 1

  • Calibration kit for capacitive coupling clamp as per IEC 61000-4-4 Ed.3
  • Extension for the PVF BKIT 1 for capacitive coupling clamp calibration with EFT/burst

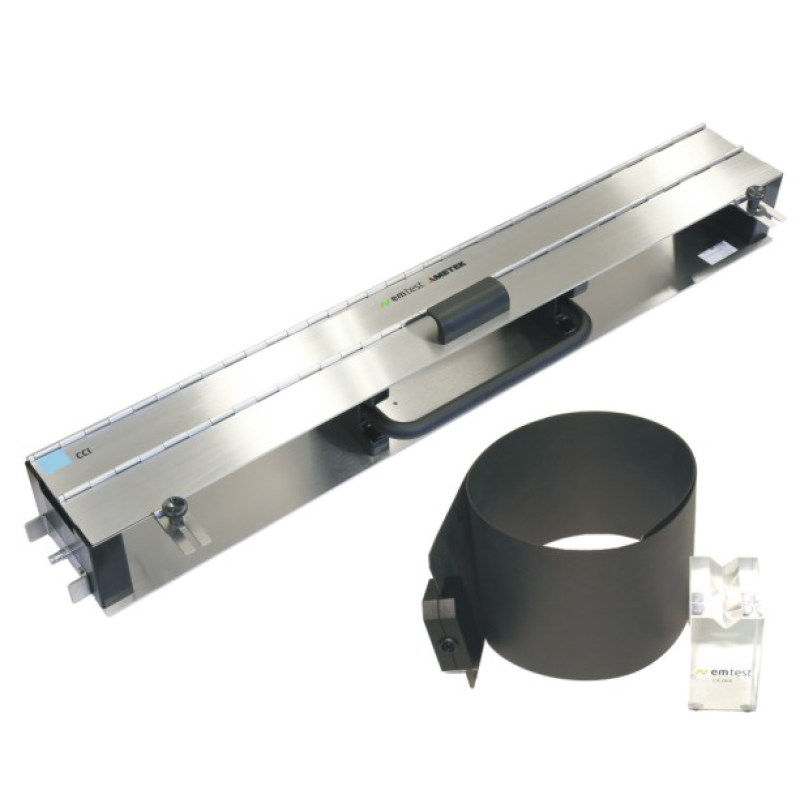

  • Flexible transducer plate 1050 mm x 120 mm included

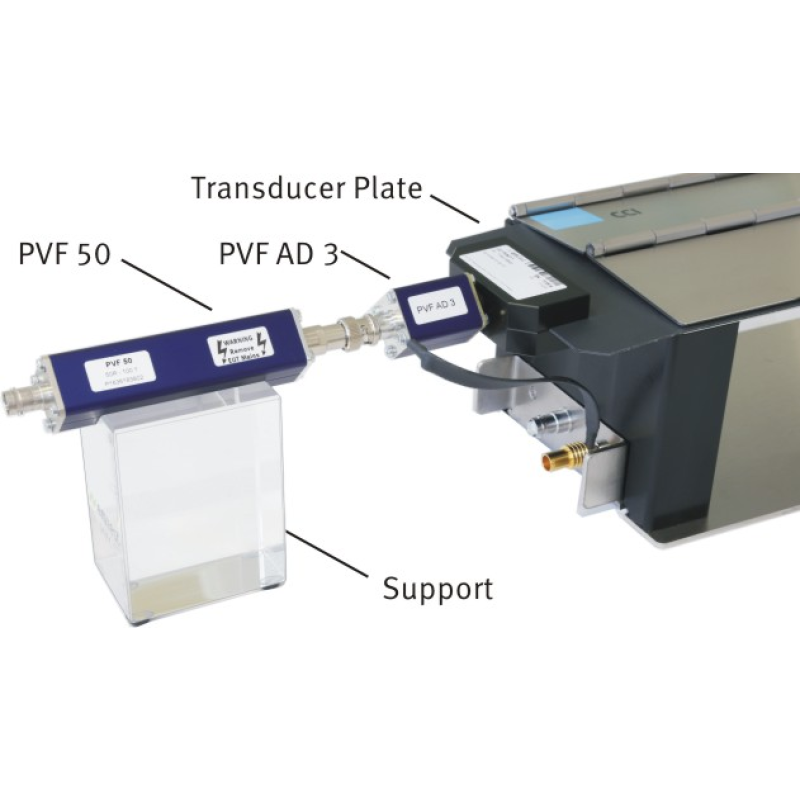

  • Support provided to adapt the load resistors on 100 mm height level

  • Overview +


    The IEC 61000-4-4 Ed 3.0 published 2012 recomends the calibration of the capacitive coupling clamp into a 50ohm coaxial load. The capacitive coupling clamp (CCI) is connected to the 50 ohm output of the EFT generator. A flexible insulated plate inside the CCI is connected to a coaxial 50 ohm load resistor for verificate the EFT / Burst wave of the capacitive coupling clamp.
